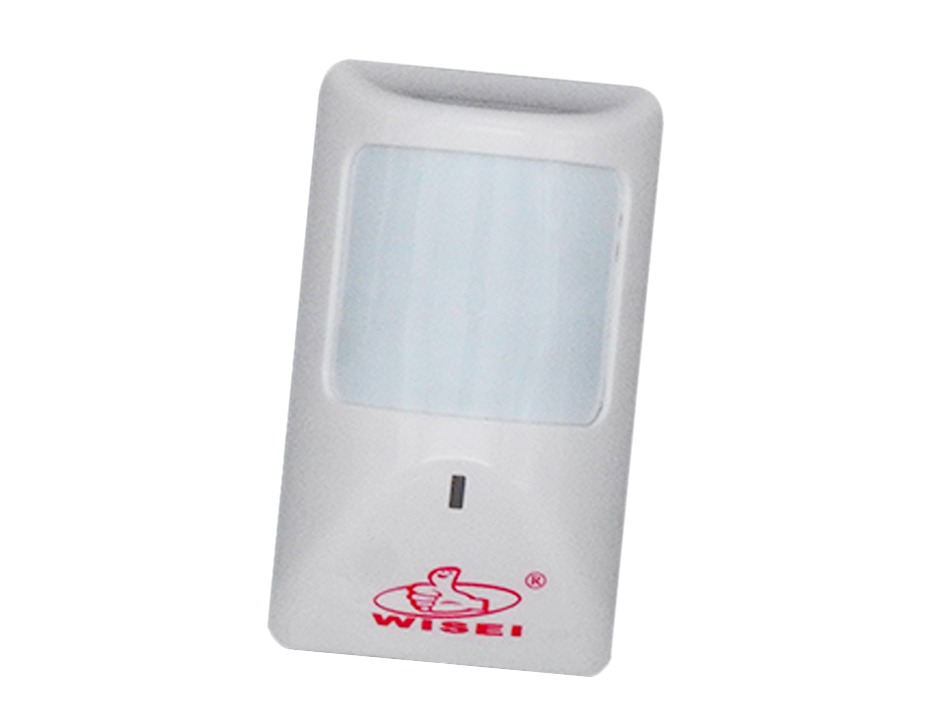

Wired PIR sensor WS-600L

Name: Wired PIR sensor WS-600L
Rating: 4.6 (99 reviews)

商品型号： WS-600L

Quantity0

产品详情

Product Features:

1. This product is a passive infrared detector with high stability.

2. It uses advanced signal analysis and processing technology to provide ultra-high detection and anti-false alarm performance.

3. With real temperature compensation, anti-white light, anti-radio frequency interference (20V/m-1GHz) and other functions.

4. Bipolar pulse count is adjustable, and NC/NO alarm output can be selected.

5. Fresnel optical lens, manufactured by SMT process, anti-radio frequency interference.

6. Suitable for safety precautions in family residential areas, real estate villas, factories, shopping malls, warehouses, office buildings and other places

Technical parameter:

Working Voltage	DC9-16V
Current Consumed	≤18MA（DC12V）
Detection Distance	12M
Detection Angle	110°
Self-check time	About 60S
Alarm Indication	Red LED
Area Covered	far11个，middle8个，near5个
Sensor	Dual thermoluminescence infrared sensor
Working Temperature	-10℃∽＋50℃
Temperature Humidity	Maximum 95％RH（No condensation）
Anti-RF interference	10MHz-1GHz 20V/m
Installation Method	Haning on wall
Installation Height	1.7-2.5（Installation height 2.2M）
Alarm output	NC/NO optional，contact DC28V 100MA
Temper switch	NC，contact DC28V 100MA
Size	8952.538.5mm
